LED Shell COB Heatsink Housing Aluminum Die Casting with Custom Mould

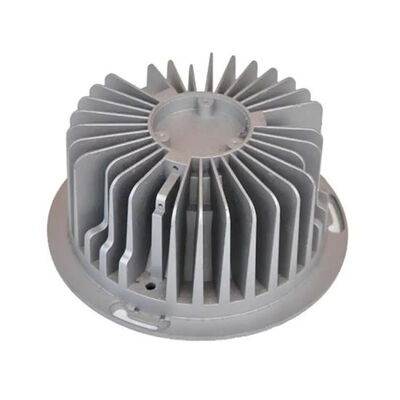

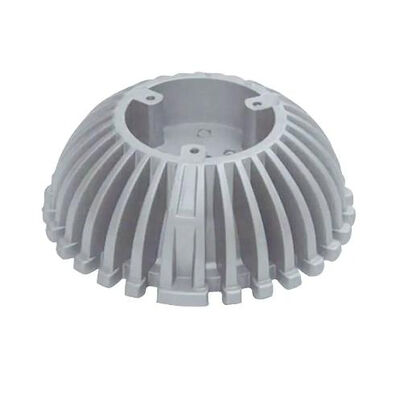

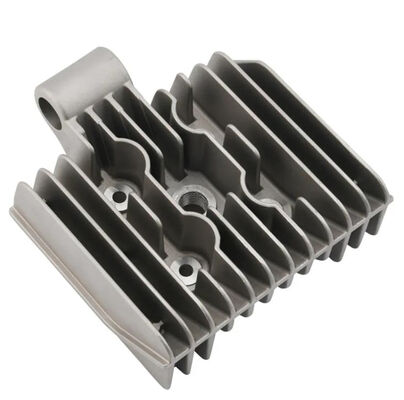

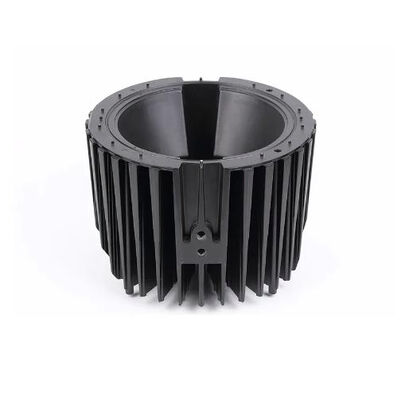

Large Image : LED Shell COB Heatsink Housing Aluminum Die Casting with Custom Mould

Product Details:

Certification:	ISO 9001:2000
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	1.99

Contact Now

Detailed Product Description

Material:	Aluminum Alloy, Carbon Steel, Alloy Steel, Stainless Steel	Process:	Drawings→ Mould Making → Die Casting →Rough Machining → Cnc Machining →Surface Treatment →Product Checking→ Packing →Delivery
Casting Dimension Tolerance:	CT7-CT8	Casting Surface Roughness:	Ra 12.5um
Casting Weight Range:	0.1-100kg	Casting Size:	Max Linear Size:1200mm, Max Diameter Size: 600mm
Machining Precision:	Positioning Accuracy 0.008mm, Rep. Position. Accuracy 0.006mm	Machining Surface Roughness:	Ra0.8~6.3um
Max Travel Of Spindle:	1800mmx850mmx700mm	Max Turning Diameter:	1000mm
Material Standard:	GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR	Surface Treatment:	Electroplating, Chrome Plating, Zinc Plating, Nickel Plating, Electrophoresis, Anodization, Polishing, Powder Coating, Sandblasting, Passivation, Spray Painting, Etc.
Casting Process Type:	High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting	Production Capacity:	10000 Pieces/Year
Tolerance Grade:	7
Highlight:	LED COB heatsink aluminum housing , custom mold aluminum die casting , die cast LED shell heatsink

LED Shell COB Heatsink Housing Aluminum Die Casting with Custom Mould

Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of more than 100,000 square meters and annual capacity exceeding 100,000 tons.

Product Description

Aluminum is the most frequently used material for aluminum castings to produce lightweight parts. The basic principle of low pressure casting of aluminum alloy is to make the liquid aluminum alloy fill the aluminum mold and undergo the entire solidification process under low working pressure (0.06-0.15MPa) to obtain high-quality casting.

Precision die casting parts are widely used in hardware parts, auto motor parts, machinery parts, medical equipment, and various industrial applications.

Specifications

Material	Aluminum Alloy, Carbon Steel, Alloy Steel, Stainless Steel
Process	Drawings → Mould Making → Die Casting → Rough Machining → CNC Machining → Surface Treatment → Product Checking → Packing → Delivery
Casting Dimension Tolerance	CT7-CT8
Casting Surface Roughness	Ra 12.5um
Casting Weight Range	0.1-100kg
Casting Size	Max linear size: 1200mm, Max diameter size: 600mm
Machining Precision	Positioning accuracy 0.008mm, Rep. position. accuracy 0.006mm
Machining Surface Roughness	Ra0.8~6.3um
Max Travel Of Spindle	1800mm x 850mm x 700mm
Max Turning Diameter	1000mm
Material Standard	GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR
Surface Treatment	Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating, Sandblasting, Passivation, Spray painting, Etc.
Casting Process Type	High Pressure Die Casting (HPDC), Vertical Low Pressure Die Casting (LPDC), Precision Sand Casting, Lost Foam Casting, Investment Casting, Metal Casting
Service Available	OEM & ODM
Quality Control	0 defects, 100% inspection before packing
Application	Train & railway, automobile & truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment
MOQ	1 TON
Payment Terms	T/T, L/C at sight
Port	Shanghai Port

Our Advantages

Over 17 years of manufacturing experience in Aluminum Extrusion
Strong design and extrusion capabilities with fast CNC machining, milling, and turning
Complete metal processing machines including laser cutting, CNC bending, and welding
Comprehensive quality control throughout the manufacturing process for long-term stability
Regular exports to United States and Europe with established customer relationships

Technical Support

Our professional R&D team provides comprehensive technical support including:

Custom design of extruded profiles based on customer requirements with CAD drawings and 3D models
Design analysis and optimization to reduce production costs and improve product performance
One-stop service from product design to surface treatment with complete quality control

Factory Equipment

Extrusion

44 aluminum extrusion lines with PLC control systems, including a 6800-ton extruder capable of producing profiles up to 600mm diameter for radiators, industrial fan blades, motor enclosures, and solar cell frames.

Anodizing

6 anodizing production lines producing uniform oxidation film thickness in silver, black, gold, champagne, and imitation steel colors with comprehensive quality inspection.

Painting

4 powder spraying lines using high-quality Gema Switzerland nozzles with environmentally friendly, durable paint.

CNC Machining

Advanced machining equipment including 12 PRATIC machining centers, Wegoma automatic cutting machines, 30 punching machines (50-100 tons), and 10 stretch bending machines for precise profile processing.

Packing & Shipping

Strict warehouse management with manual packaging and comprehensive inspection before delivery.

Certifications

Company History

2004: Recognized brand of the building industry material market
2006: Certificate for product exemption from quality surveillance inspection and ISO9001
2009: Advanced company, Jiangsu famous brand certificate, Credible product of quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Innovative producer and supplying partner for European clients
2017: Developed new baseboard heater products
2019: Cooperated with world's largest heater manufacturers as aluminum shell supplier
2023: Expanding overseas distributor network for win-win benefits

Project Portfolio

Soccer City Stadium, Johannesburg: Main aluminum supplier for Africa's largest capacity stadium (94,000 seats).
