Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 ,T66 |
| High Light: | aluminum extrusion profiles,aluminium extruded profiles |
||

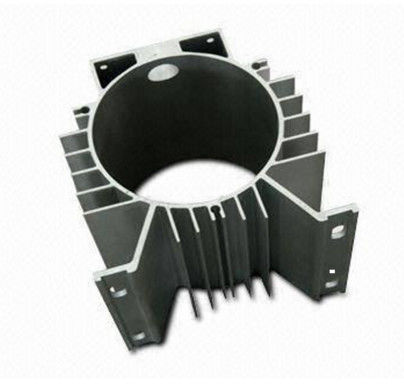

Silvery Anodized 6063 Industrial Aluminium Profile Cylinder Shell With Finished Machining
Industrial aluminum profile
1.aluminum 6063
2.Finish:anodized,powder coating
3.Deep Precision Can Accept
4.OEM Can Accept
Description:
| Brand name | Hentec |
| Aluminum products | Aluminum profile,Thermal break profile,Aluminum bar,Aluminum tube/pipe, Aluminum sheet,Aluminum heat sink section,Aluminum curtain wall,Aluminum handle,Aluminum frame,Aluminum rail,Aluminum accessory |
Thickness |
Mill finish profile thickness:0.3mm-3mm |
| Anodizing film thickness:over13μ | |
| Power coating film thickness:over13μ | |
| Length | General length:0-6m |
| Meet customers requirement | |
| Shape | Round,Flat,Square,Oval,Triangle,Pentagon, Hexagon,T,L, or customized requirement available |
Surface treatment |
Powder coating,Anodizing,Sand blasting, wood grain,electrophoresis, polishing,PVDF,etc |
Deep process |
CNC,Drilling,Milling,Bending,Cutting,Welding,etc |
| Colour | Silver, bronze,Black,Champagne,gold,White,Grey,Green,etc |
| Temper | AL6063 |
| Application | Industry aluminum profile parts,consumer products,home electric appliances, luggage,Hairdressing supplies,Furniture,Kitchen cabinet door,LED light,ceiling,machine,fences,Construction,,etc |
| Lead time | 7-15 days after the sample is confirmed by buyer |
| Mould fees | Free of charge if use existing mould |
| Customer OEMDesign, Charged by the mould dimension | |
| Packing details | Packed with plastic protective film to protect each piece inside |
| Wrap to be bundles by waterproof craft paper | |
Packing ways according to customer' design of the profile. |
Our service:
Onsite Factory Services |
Onsite Factory Services |
Aluminum Profile Extrusion Aluminum Aging (bake to harden) Cutting Surface Treaments:Unique Secure Packaging Mill Finish Anodizing Hard Anodizing(Above 10 um) Sand Blasting Powder Coating Electrophoresis Alumawood (Wood grain transfer) Polishing/Brushing PVDF Coating |
CNC Machining Drilling Stamping/Punching Bending Welding Tumbling Deburr Chamfer Stretch bending And so on... |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
5.Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66
Competitive Advantage:
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
