Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Surface: | Anodized |
|---|---|---|---|
| Color: | Natural | Temper: | 6063-T5 |
| Deep Process: | Cutting ,Drilling ,Milling | Packing: | Pallet / Wooden Case |
| Highlight: | aluminum extrusion profiles,aluminium door frame |
||

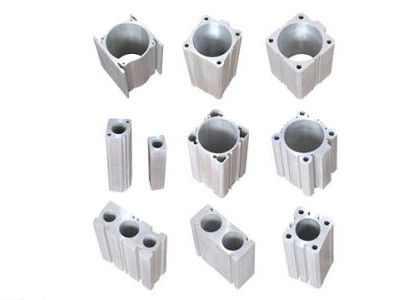

Silvery Anodized Aluminium Industrial Profile Cylinder Shell DIN Standard
Description:
1. Description: Aluminum Industrial profile
2. Alloy temper: 6063-T5/T6; 6061-T5/T6 6082-T6
3. Standard: EN755, ASTMB221, DIN Standard
4. Surface treatment: Mill finish; Anodizing; Powder coated, Brushed.
5. Application: Car; Aerospace; Ship; Armarium; Industrial equipment; And etc.
6. Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Hard alloy longer life span
6) Packing safety and convenient.
| Item | Original product | Alternatives |
| Extrusion Tolerance | GB /T5237-2000 (Chinese Standard) |
EN-755-2/3/6/8, BS-1474, BS 1161 (British Standards) JIS H4100 (Japanese Standard) AS/NZS1866-1997 (Australian New Zealand Standard) |
| Machining Tolerance | GB/T1804-92 |
BS 8118 TS1649 |
Standard for Anodizing |
GB5237.2-2004 |
BS1615: 1987 BS5599: 1993 Mil-A-8625E Type II Mil-A-8625E Type III |
| Manufacturing process | Die designing→ Die making→ Smelting& alloying→ Extruding→ Cutting→ CNC machining→ Driling→ Tapping→ Surface treatment→ Welding→ Assembling→ Packing | |
| Packing method | 1. Standard packing: Each profile is seperated wrapped in plastic sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles. 2. Special packing: wooden cases+iron trays. 3. Bundles or boxes with wooden bars 4. EPE+carton boxes. 5. Customized packing methods are welcomed 6. 13 tons to a 20 feet container, 20 tons to a 40 feet container |
Applications:
--1--. QUALITY GUARANTEED: One-stop service, tool design, smelting, extruding, machining, surface treatment, packing as well as assembling can be all finished in house.
--2--. RELIABLE QUALITY: Our company is ISO9001: 2008 certified
--3--. High Efficiency: Most competitive price with short lead time for tooling design and the parts
--4--. Efficient COMMUNICATION (48-hour quotes price/lead time/MOQ)
--5--. Compliant test with RoHS
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
