Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 ,6005,6060 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |
| High Light: | aluminum extrusion profiles,aluminium door frame |
||

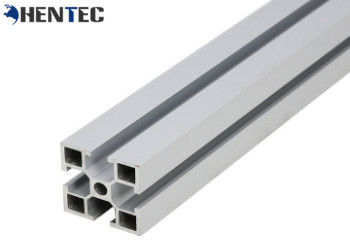

Anodized Industrial Aluminium Profile System V Slot Aluminum Extrusion Profile
Product Specification
(1). Suitable for T slot aluminum profile
(2). 20 years warranty.
(3). High corrosion resistance.
(4). 5-10 years weather resistance.
(5). Good wear resistance & anti-scratch.
(6).Size customized.

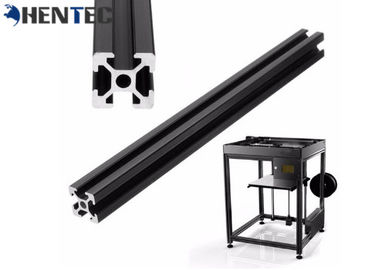

| Product | Silvery / Black Anodized T-Slot Aluminum Profiles Extrusion Frame For CNC building |
| Material | 6000series aluminium alloy |
| Temper | T4 ,T5 , T6 |
| Surface treatment | Mill finish,powder coating, anodizing, wooden grain coating,polishing,eletrophoresis,PVDF, sanding blasting, etc. |
| Size | 40x40mm,30*30mm ,30*40mm , 25*25mm |
| Slot width | 6MM,8MM,10MM |
| Length | the standard length for the aluminum profile is 6m/pc, and we have very professional machine for free cutting on any size. |
| Appearance | Normally square,round and T-shaped,or customized |
| Color | Silver,black,blue,wood color,according to clients' requirements. |
.
Applications:
Our aluminum profile has a wide range of application, like Radiator, Assembly line, Frame system, Machine Guards, Stairs & Platforms, Display rack, Automotive, Motor aluminium housing, Bridge system, Vessel, Elevator, etc.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
