Pneumatic Cylinder Industrial Aluminium Profile Electric Motor Shell

China Pneumatic Cylinder Industrial Aluminium Profile Electric Motor Shell supplier
Pneumatic Cylinder Industrial Aluminium Profile Electric Motor Shell supplier Pneumatic Cylinder Industrial Aluminium Profile Electric Motor Shell supplier

Large Image :  Pneumatic Cylinder Industrial Aluminium Profile Electric Motor Shell

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Contact Now
Detailed Product Description
Material: Aluminum Alloy Surface: Anodized
Color: Natural Temper: 6063-T5
Deep Process: Cutting ,Drilling ,Milling Packing: Pallet / Wooden Case
High Light:

aluminum extrusion profiles

,

aluminium door frame

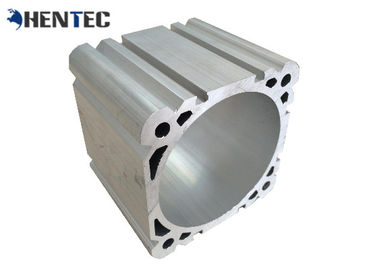

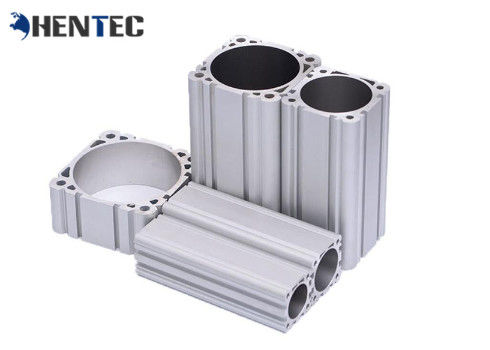

Pneumatic Cylinder / Industrial Aluminum Profile / Aluminium Electric Motor Shell





Description:



Item OEM Aluminum Extrusion Profile
Material 6000 series Aluminium T4, T5, T6
Size / Thickness General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available;
Anodized protection film thickness from 8~25 um, powder coating from 40 ~ 120 um.
Shape square, round, t shaped, rectangular, customized
Surface treatment mill finish, anodized, powder coating, wood grain, sandblasting, and so on
Colors silver, black, blue, wood color, RAL powder coating color and so on
MOQ 500kgs for each item
FOB Port Shanghai
payment terms T/T 30% for deposit, balance before shipping.
settlement term Charge by final actual weight or by drawing theoretical weight.
Certificate and
Standard
CQM, SGS, CE, BV, SONCAP / GB, ISO available



Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1. Primary Technical Data



1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





2. Specifications:



Excellent material for smooth and subtle edges.

Elegant appearance.

Surface treatment: colorful anodized or electrostatic powder coated.

Suitable for constructions and other industrial purposes.

Customized surface finishes are welcome.







Competitive Advantage:



1) Engineering design and support.

2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.



Pneumatic Cylinder Industrial Aluminium Profile Electric Motor Shell 0
