Product Details:
Payment & Shipping Terms:
|
Material: | Aluminum Porifle | Temper: | T5 T6 |
---|---|---|---|
Surface: | Brushed & Anodizing | Color: | Customized |
Logo: | Printing / Punching | Usage: | Industrial |
High Light: | T5 industrial aluminium profile,industrial aluminium profile T5,6063 industrial aluminum profile |

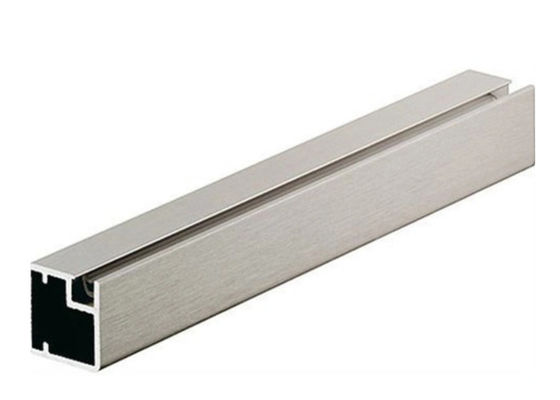

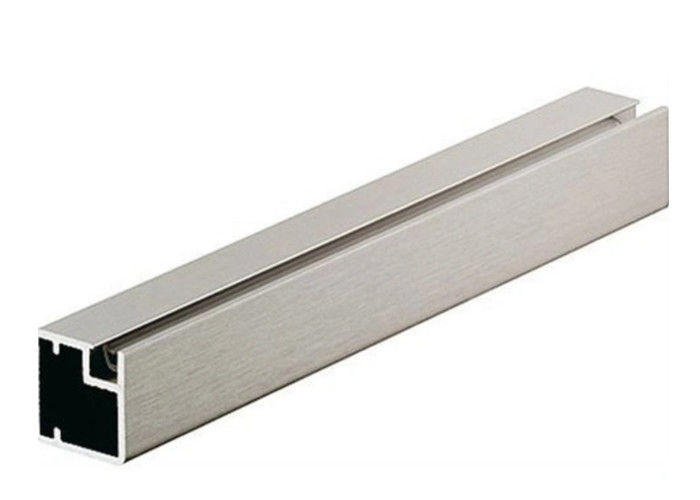

Extrude Industrial Aluminium Profile With Finihed Machining , Brushed / Satin Surface Sreatment
1.Alloy : 6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
Description:
Product Description | |
Item | Powder Painting Extrude Industrial Aluminium Profiles , With Finihed Machining |
Material | 6063/6060/6005/6061/6082 |
Temper | T4 T5 T6 T66 |
Size/Thickness | General aluminum profiles thickness from 0.8-4.0mm, length from 3m-6.4m or customized availble; Anodize protection Thickness from 8-25um, powder coating from 40-120um. |
Shape | Customized, rectangual, round, square |
Application | Structure |
Suface treatment | Anodize, powdering coating and customized availble |
MOQ | 500 kgs for each item |
Packing Details | Plastic film or craft paper ,wooden case |
Delivery time | Developing and sample testing: 15-17 days; 2. Production completed: 25-30days after sample is comfirmed by customers |
FOB Port | Shanghai |
Payment | T/T, L/C |
Applications:
Industrial, Aluminum Enclosure, Advertising Equipments, Office Furniture and Partitions, Windows & Door, curtain walls, ceiling, Heat sink, LED strip, Standard Profile, Medical equipment, DIY Equipment/ Furniture, electric products
Specifications:
1.Primary Technical Data
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
