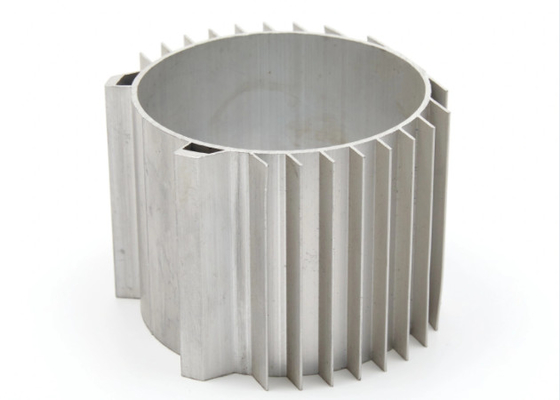

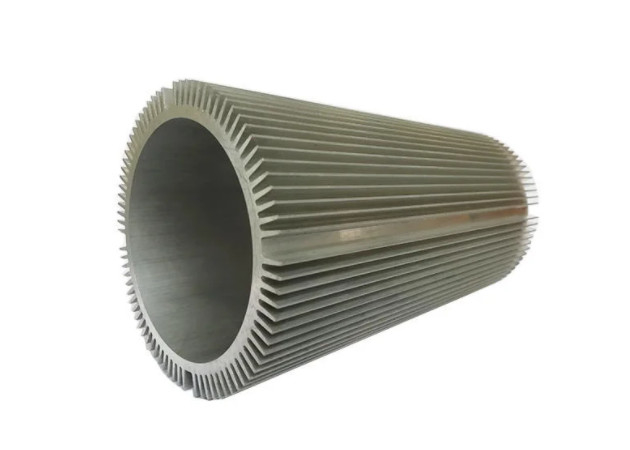

Anodized Electric Motor Shell Industrial Aluminium Profile 6063 T5

Anodized Electric Motor Shell Industrial Aluminium Profile 6063 T5
Anodized Electric Motor Shell Industrial Aluminium Profile 6063 T5 Anodized Electric Motor Shell Industrial Aluminium Profile 6063 T5

Large Image :  Anodized Electric Motor Shell Industrial Aluminium Profile 6063 T5

Product Details:
Place of Origin: China
Brand Name: MetalPlus
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Material: Aluminum Alloy Surface: Anodized
Color: Natural Temper: 6063 T5
Deep Process: Cutting ,Drilling ,Milling Packing: Pallet / Wooden Case
High Light:

electric motor shell industrial aluminium profile

,

industrial aluminium profile 6063 t5

,

metal extrusion profiles 6063 t5

 Anodized Industrial Aluminum Profile / Aluminium Electric Motor Shell



The aluminum motor shell of electric vehicle produced by MetalPlus has the characteristics of high tensile strength, no cutting of inner diameter and good ductility. It has good ductility, light weight, small specific gravity, good heat dissipation and thermal conductivity. High tensile strength, smooth surface and corrosion resistance. Inside diameter free cutting, simple structure, convenient maintenance, high efficiency, convenient transportation.




Description:



Extrusion Tolerance
GB /T5237-2000
(Chinese Standard)

EN-755-2/3/6/8, BS-1474, BS 1161
(British Standards)
JIS H4100 (Japanese Standard)
AS/NZS1866-1997
(Australian New Zealand Standard)
Machining Tolerance
GB/T1804-92

BS 8118
TS1649

Standard for Anodizing

GB5237.2-2004

BS1615: 1987
BS5599: 1993
Mil-A-8625E Type II
Mil-A-8625E Type III
Manufacturing process Die designing→ Die making→ Smelting& alloying→ Extruding→ Cutting→ CNC machining→ Driling→ Tapping→ Surface treatment→ Welding→ Assembling→ Packing
Packing method
1. Standard packing: Each profile is seperated wrapped in plastic sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles.
2. Special packing: wooden cases+iron trays.
3. Bundles or boxes with wooden bars
4. EPE+carton boxes.
5. Customized packing methods are welcomed
6. 13 tons to a 20 feet container, 20 tons to a 40 feet container




Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





2.Specifications:



Excellent material for smooth and subtle edges.

Elegant appearance.

Surface treatment: colorful anodized or electrostatic powder coated.

Suitable for constructions and other industrial purposes.

Customized surface finishes are welcome.







Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
