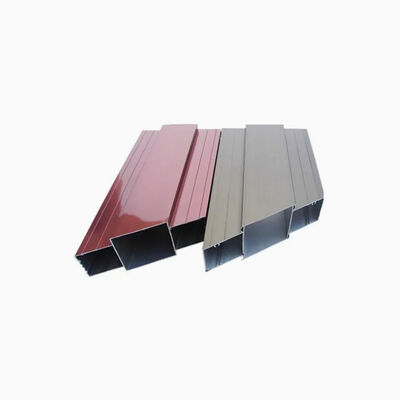

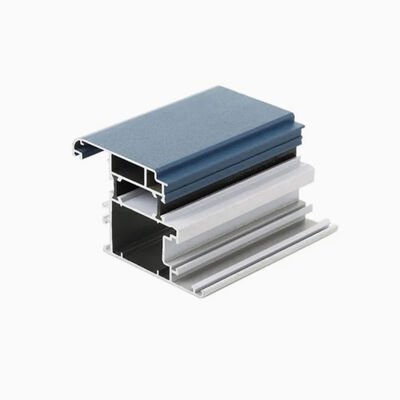

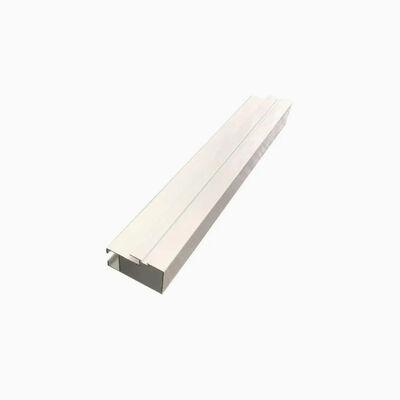

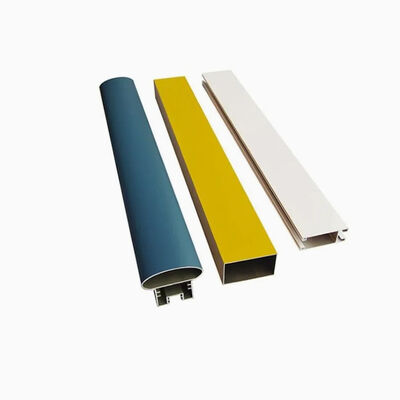

Custom Aluminum Extrusion Profiles for Construction & Elevators
Our 4500T grade extrusion machine enables production of any section within 400×150mm and φ360 dimensions. We welcome your custom drawings and provide comprehensive OEM services including fully assembled premium grade window and door systems.
Product Specifications
| Item |
Oxidation Construction Aluminum Profile / Aluminum Elevator Profile |
| Material |
Aluminium 6000 series alloy: 6063, 6005, 6061 |
| Temper |
T4, T5, T6 |
| Size |
3m - 6m per piece, or customized |
| Shape |
Round, square, flat, hollow, oval, triangle, U-profile, L-profile, T-profile, customized available |
| Thickness |
0.8 - 5.0mm |
| Application |
Elevator systems |
Surface Treatment Options
| Surface Treatment |
Mill-finish, anodized, powder coated, electrophoresis, brushed |
| Anodized Colors |
Silver, black, champagne, bronze, gold or customized |
| Anodized Thickness |
8 - 25μm |
| Electrophoresis Colors |
Silver, black, champagne, bronze, gold or customized |
| Powder Coated Colors |
Customized |
| Powder Coated Thickness |
60 - 120μm |
| Guarantee |
Surface color stability for 10-20 years indoor use |
Packaging Solutions
| Bundles Packing |
Inside: EP foam protection; Outside: Waterproof craft paper wrapping |
| Carton Packing |
Inside: Individual plastic bags; Outside: Multiple pieces per carton |
| Wood Pallet Packing |
Inside: Bundles or cartons; Outside: Multiple units on wood pallet |
| Customized Requirements |
Available upon request |
Service Details
| MOQ |
500kg per item; 13-15 tons for 20GP; 25 tons for 40HQ |
| OEM Service |
Drawing, sample or design service provided by customer |
| Production Capacity |
5,000 metric tons monthly |
| Deep Processing |
CNC, drilling, milling, cutting, bending, tapping, welding, assembling, punching |
| Brand Name |
HENTEC |
| Certifications |
ISO9001-2008, ISO14001, SGS |
| Delivery Time |
Die development: 12-18 days; Mass production: 20-30 days after sample confirmation |
| Payment Terms |
T/T, L/C |
| FOB Port |
Shanghai |
| Settlement Terms |
Final actual weight or drawing theoretical weight |
Applications
Industrial aluminum profiles for automotive, railway, machinery, electronics, medical equipment, and various industrial applications. Used as essential auxiliary materials in hardware, machinery, electromechanical parts, solar PV products, radiators, fitness equipment, construction, lighting instruments, ventilation ducts, and oil pipelines.
Competitive Advantages
Engineering Design & Support
Professional R&D team for design optimization and technical assistance
Deep Processing Capabilities
Comprehensive machining services including cutting, punching, drilling, milling, and fabrication
Quality Assurance
Strict inspection during production and comprehensive pre-shipment quality control
Product Warranty
15-year product performance guarantee
Technical Data
Chemical Composition
| Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
| 6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
| 6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
| 6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
| 6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
Mechanical Properties
| Alloy |
Temper |
Tensile Strength |
Yield Strength |
Elongation |
| 6063 |
T5 |
≥ 160MPa |
≥ 110MPa |
≥ 8% |
| 6063 |
T6 |
≥ 205MPa |
≥ 180MPa |
≥ 8% |
| 6061 |
T6 |
≥ 265MPa |
≥ 245MPa |
≥ 8% |
Technical Support
Our comprehensive technical support includes:
- Custom design services with CAD drawings and 3D models for profile development
- Professional R&D team analysis and design optimization to reduce costs and enhance performance
- Complete "one-stop" service from product design to surface treatment with full quality control
Manufacturing Capabilities
Extrusion
44 aluminum extrusion lines with PLC control systems, including a 6800-ton unit for profiles up to 600mm diameter. Custom mold production for complex structures with R&D support for cost-effective solutions.
Anodizing
6 anodizing production lines producing uniform oxidation films (8-25μm) in various colors. Strict quality control ensures consistent color and appearance across production batches.
Painting
4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paints for excellent adhesion and color retention.
CNC Machining
Advanced machining equipment including 12 PRATIC machining centers for profiles up to 6 meters, automatic cutting machines from Wegoma, 30 punching machines (50-100 tons), bending machines, and milling equipment for comprehensive fabrication services.
Quality Packaging & Shipping
Manual packaging with strict warehouse management procedures. Organized storage systems with comprehensive inspection before delivery.
Certifications
Company History
Established reputation in building industry materials since 2004 with continuous growth and innovation:
- 2004: Recognized brand in building industry material market
- 2006: ISO9001 certification and product quality exemption
- 2009: Advanced company status and Jiangsu famous brand
- 2012: Partnerships with Panasonic and LG
- 2015: Innovative supplier for German clients
- 2017: Development of baseboard heater products
- 2019: Supplier for world's largest heater manufacturers
- 2023: Global distributor network expansion
Notable Projects
Soccer City Stadium, Johannesburg
Main aluminum supplier for Africa's largest stadium (94,000 seats). The project received unanimous praise upon completion.
Lobster Trailers
Collaboration with Nordic trailer giant featuring design optimization and advanced processing to minimize costs and enhance product performance.
School Desk Project
Supplied aluminum legs for school desks, supporting local customer Dadn in winning school project bids through strong design and manufacturing capabilities.
