Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| High Light: | aluminium door frame,aluminium extruded profiles |
||

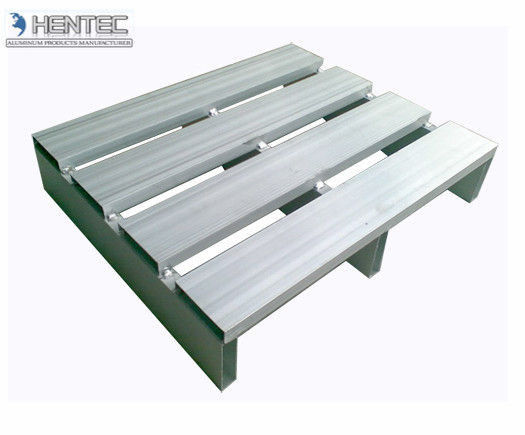

Descrition:High Quality Aluminum Pallets , With Finished Machining , Cutting / Welding
1. Material : 6063,6061,6082,6005
2. Temple:T5,T6;
3. Surface : Anodizing,powder coating;
4. Packing : Carton, Pallet ,Wooden Case ,EP Foam ,Kraft
aluminum:
1. Aluminum Extrusion Profile in 6063/6005/6061 Alloy
2. Various shapes, parameters and colors available
3. High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance
4. Quality complies with international standard.
5. We can do the aluminium alloy extrusion and profile as per your drawings, samples and request.
SERISES of surface treatment:
1. mill finished
2. anodizing:shiny anodized,frosty anodized
3. electrophoretic coating:shiny elecyrophoretic,frosty electrophoretic
4. electrophoretic color powdercoating:normal color,special color.
5. fluorocarbon powder spraying:normal color,special paper
6. polished
7. wood grain coating: special paper, special paper
Order,payment,terms,shipment
1, Minimum order: 500kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment: L/C ,T/T
Applications:
Aluminum profile used in cars, trains machinery ,electronics, medical , solar panel frame and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
(Class) |
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Competitive Advantage:
We can provide a full range services including: extrusion, anodizing, machining up to 6 metre lengths . we have also gained a
reputation as the specialist manufacturer of complex, high quality aluminium extrusions, aluminum tube, seamless aluminum tube, aluminum bar, aluminum angle, aluminum channels, and industry profiles, in a wide range of commercial alloys.
