| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| High Light: | aluminium door frame,aluminium extruded profiles |
||

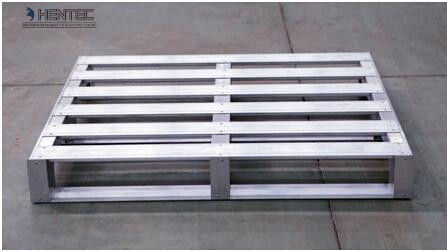

6063-T5 Industrial Aluminum Profile , 2 Way Light Weight Aluminum Pallets Electrophoresis
Descrition:
We are Hentec Industry Co.,Ltd, which specializes in the manufacturing of various aluminum alloys series products in the forms of tubes, pipes, bars, etc. These products can be used for pallets, decorations, windows and doors, and transport tools, etc.
|
Item |
2-Way Light Weight Aluminum Pallets , With Finished Machining |
|
Alloy |
6061,6060,6063,6005 etc |
|
Temper |
T4, T5, T6 |
|
Surface |
Oxidation coloring,Powder coating, Anodizing(clear, satin, bronze, black, golden, silver, other multicolor), Electrophoresis,PVDF coating, Mill finish, polished, color coated,Wire drawing,Wood grain,etc |
|
Type |
2-way lightweight slatted pallet , interloking 4-way block pallet , Fully Nestable 4-way entry with standard deck pallet , 2-way heavy duty channel pallet , fully nestable pallet ... |
|
Technology Supports |
1, Engineering design |
|
Standard |
Meet the China national standard and Europe standard and American standard. |
|
Extrusion Tolerance |
GB/T5237-2000 (Chinese Standard) |
|
Machining Tolerance |
GB/T 1804-92 |
|
Standard for Anodizing |
GB5237.2-2004 |
|
Manufacturing Process |
Die designing→ Die making→ Smelting& alloying→ Extruding→ Cutting→ CNC machining→ Driling→ Tapping→ Surface treatment→ Welding→ Assembling→ Packing |
|
Packing method |
1. Standard packing: Eachprofile will be wrapped in the EPE sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles. |
Applications:
Aluminum profile used in cars, trains machinery ,electronics, medical , solar panel frame and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
(Class) |
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Competitive Advantage:
Our extrusiom eqipment is from 500 tons to 2500 tons can meet every kinds of usuage like constructive, Industrial, family use.
For make sure our products quality every extrusion products have very strickly inspected system like All manages special commissioner to use the electronic bracket, the sclerometer test examination. This company still provided the sclerometer and the electric conduction reflectoscope reflector examines the request specially high aluminum.
FAQ For Saving Your Precious Time!
Q1: What's the thickness for anodizing?Can you do 15um?
A: Our normal thickness is about 10 um.Yes, we can do 15um and above.
Q2: What color you can do for powder coating?The thickness for powder coat?
A: We can do any color for powder coat as long as you can provide the color sample.Our normally powder coating thickness is 60-80um.
Q3: What color you can do for wood grain?
A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc.If you need any other colors, we can do according to the color samples you provide.
Q4: How's the weather resistance for wood grain finish D1010?
A: (1). Powder:Akzo Noble Interpon D1010.
(2). Wood grain film:Italian Menphis.
(3). Standard complied:American AAMA Standard.2603
(4). UV test:1000 hours.
(5). Salt spraying test:1000 hours.
(6). Normal weather:10 years color guarantee.
Q5: What certification do you have?What's your standard?
A: We have ISO certification.Our standard is DIN, AAMA, AS/NZS, China GB.
Q6: What's the delivery time for samples and mass production?
A:(1). 2-3 weeks to make the new moulds and make free samples.
(2). 3-4 weeks after receipt of deposit and confirmation of the order.
