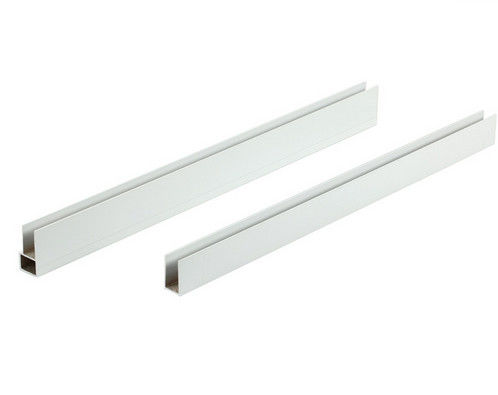

Cars Modular Passive Industrial Aluminium Profile With Powder Spray Coated

Cars Modular Passive Industrial Aluminium Profile With Powder Spray Coated
Cars Modular Passive Industrial Aluminium Profile With Powder Spray Coated

Large Image :  Cars Modular Passive Industrial Aluminium Profile With Powder Spray Coated

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Model Number: KTES-087

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T3, T4, T5, T6
High Light:

aluminum extrusion profiles

,

aluminium door frame

Modular Passive Industrial Aluminum Profile For Led Torch Lighting







LED Aluminum Profile Features:

1, User friendly: All kinds of parts for easy installation

2, Different size of aluminium bars, suitable for most LED strips in the market

3, Flexible ways to connect electricity at both sides or at the bottom of products, with perfect joint between 2 bars.

4, 6063 aluminium with excellent heat dissipation

5, Surface dealing: Oxidation vaporous silver

6, The appearance is simple and good-looking

7, 3 types of extrusion PC cover for option: Clear, frosted and opal

8, Standard size of 520mm and 1020mm for option and customized size being acceptable

9, 2 waterproof types available
Sectional Dimension

Service Environment and Installation

Pictures taken in kind
Master device Aluminum profile              1pcs
Lens type
  (alternative)
Clear lens
Semi-transparent lens
Milky-white lens
Accessories End cap                                2 pcs
Clip                                   2 pcs
Screw                       3x10mm   2 pcs




Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2.Specifications:



Excellent material for smooth and subtle edges.

Elegant appearance.

Surface treatment: colorful anodized or electrostatic powder coated.

Suitable for constructions and other industrial purposes.

Customized surface finishes are welcome.







Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
