Anti Scratch Anodized 6063 T5 Industrial Aluminum Extrusion T Slot V Slot Profile for Clean Room

Large Image : Anti Scratch Anodized 6063 T5 Industrial Aluminum Extrusion T Slot V Slot Profile for Clean Room

Product Details:

Certification:	CE, ISO
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	4.99

Contact Now

Detailed Product Description

Model NO.:	V Slot Profile	Type:	Industrial Aluminium Profile, Aluminum Profile System
Shape:	T - Profile	Grade:	6000 Series
Temper:	T3-T8	Alloy:	Alloy
Surface Finishing:	Anodic Oxidation	Alloying Ingredient:	6063
Surface Treatment:	Sandblasting Anodized	Size:	30/40/50/60/80/100mm
Deep Process:	Cutting, Drilling, Tapping, Milling	Specification:	2020, 3030, 4040, 4080, 3060, 8080mm
Production Capacity:	100000 Ton/ Year	Tensile Strength:	≥ 160Mpa (T5), ≥ 205Mpa (T6)
Yield Strength:	≥ 110Mpa (T5), ≥ 180Mpa (T6)
Highlight:	6063 T5 Aluminum Extrusion Profile , Anti Scratch T Slot Profile , Anodized V Slot Profile

Anti Scratch Anodized 6063 T5 Industrial Aluminum Extrusion T Slot V Slot for Clean Room

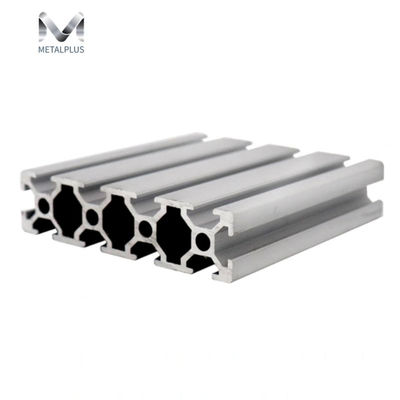

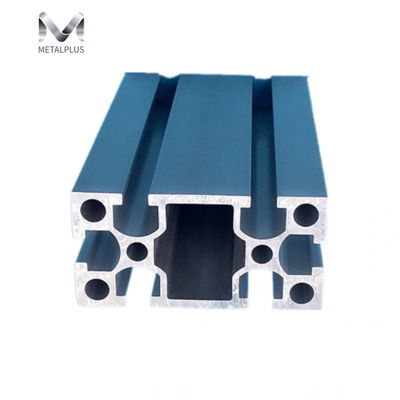

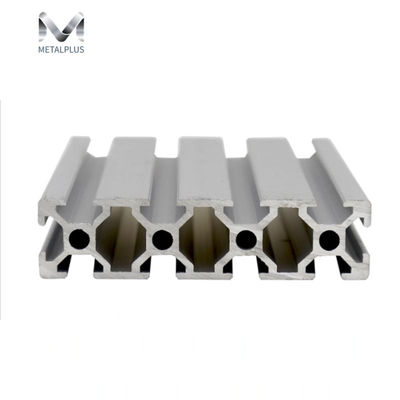

Our T-slot aluminum profile is engineered for high-load applications including heavy work stations, fixtures, machine supporting structures, and transporting shuttles. The 40 dimension offers optimal load-carrying capacity, providing a cost-effective and stable solution for design engineers.

Specifications

Product: Aluminum industry profile
Surface treatment: Mill finishes, Anodized, Powder coated, Wooden grain, Machine/Acid polished
High corrosion resistance
Applications: Industry, construction, exhibition, decoration
Excellent wear resistance & anti-scratch properties
Custom sizes available
Alloy temper: 6061-T6, 6063-T6, 6082-T6
Standards: EN755, ASTMB221, DIN Standard
Packing: Shrinking film, Carton, Wooden pallet or custom requirements
Delivery: 25-30 days for mass production

Key Features

Lightweight yet high strength with excellent stability
Superior resistance to corrosion, abrasion, acid and alkali
Incombustible aluminum alloy material with strong impact resistance
Tight joint design for excellent soundproofing
Waterproof structure for door and window applications

Applications

Our T-slot industrial aluminum profiles, made from Alloy 6061-T5/T6 or 6063-T5/T6, are widely used for display and exhibition shelves, conveyor systems, work benches, machine frames, stairway-platform-systems, transportation, and construction applications.

Competitive Advantages

Modular construction: Quick assembly without complex design or processing
Aesthetic & functional: Lightweight with high rigidity and attractive appearance
Enhanced expandability: Unique T-slot design allows component installation anywhere without profile demolition

Product Parameters

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Packaging & Shipping

Packaging: Standard export package, with custom options available

Shipping:

Samples shipped via express (FEDEX, DHL, UPS, EMS) with freight paid by client
FOB Shanghai for mass production
Delivery Time: 3 weeks after order confirmation

Company Profile

MetalPlus operates a 3600-ton extrusion press capable of producing heat sinks up to 600mm diameter. We specialize in custom aluminum extrusions for construction and industrial applications, offering complete services from mold making to fabrication and surface treatment.

Certifications

Company History

2004: Recognized Brand of the Building Industry Material Market
2006: Certificate for Product Exemption from Quality Surveillance Inspection & ISO9001
2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Innovative producer and supplying partner for European clients
2017: Developed new baseboard heater products
2019: Supplier to world's largest heater manufacturers
2023: Expanding overseas distributor network

Notable Projects

As main aluminum supplier for Soccer City Stadium in Johannesburg - the largest capacity stadium in Africa with 94,000 seats. The project received unanimous praise upon completion.

Collaboration with Lobster Trailers, a Nordic trailer giant, where our R&D team optimized designs and production processes to minimize costs while improving performance.

Supplied aluminum legs for school desks as part of a local education project, demonstrating our design capabilities and manufacturing expertise.
