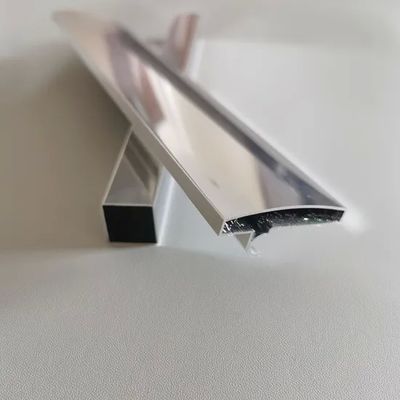

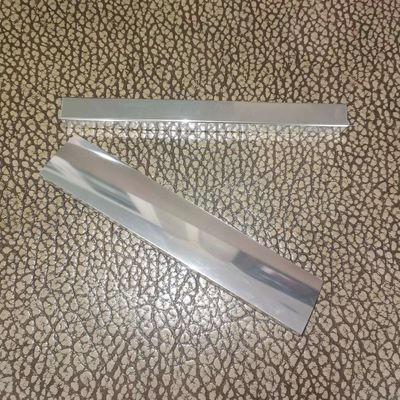

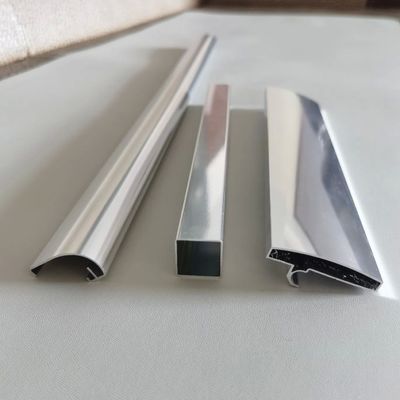

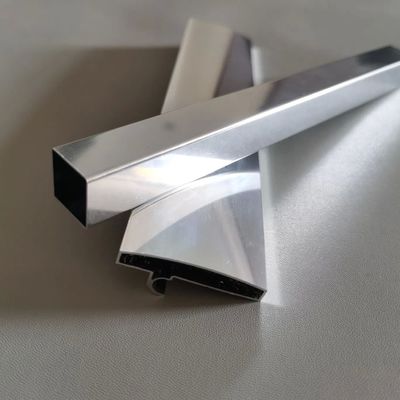

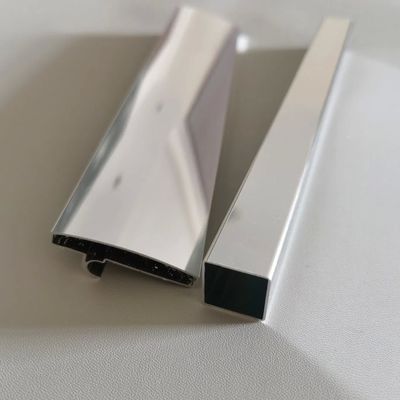

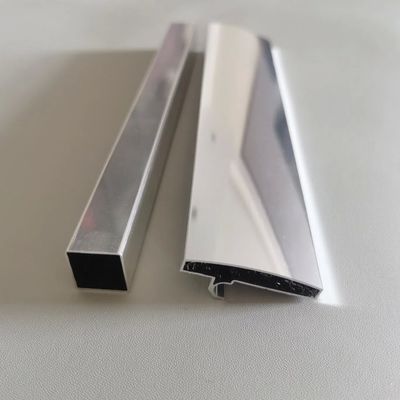

Custom Polished Bright Anodized Aluminum Extrusion Profile for Shower Room with Precision Cutting

Large Image : Custom Polished Bright Anodized Aluminum Extrusion Profile for Shower Room with Precision Cutting

Product Details:

Certification:	SONCAP, ISO, RoHS, TUV
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	3.9

Contact Now

Detailed Product Description

Grade:	6000 Series	Temper:	T3-T8
Alloy:	6063	Surface Finishing:	Anodic Oxidation
Profile Thickness:	0.8 - 5.0mm	Anodized Thickness:	8 - 25um
Powder Coated Thickness:	60-120um	Length:	3m - 6m
Extrusion Size:	400*150mm, φ360	Tensile Strength:	≥ 160Mpa (T5), ≥ 205Mpa (T6)
Yield Strength:	≥ 110Mpa (T5), ≥ 180Mpa (T6)	Elongation:	≥ 8%
Production Capacity:	5000 Metric Tons/month	MOQ:	500kgs
Extrusion Machine Capacity:	6800 Ton
Highlight:	Custom Polished Aluminum Extrusion Profile , Bright Anodized Aluminum Profile , Shower Room Aluminum Extruded Profile

Custom Polished Bright Anodized Aluminum Extrusion Profile for Shower Room

Our 4500T grade extrusion machine enables production of any section within 400×150mm and φ360. We welcome your custom drawings. Price includes basic aluminum ingot, extrusion cost, surfacing cost, and extras. We also supply fully assembled premium grade window & door systems.

Product Specifications

Item	Aluminum Bright Shiny Polished Industrial Extrusion Profiles
Material	Aluminium 6000 series alloy: 6063, 6005, 6061
Temper	T4, T5, T6
Size	3m - 6m per piece (custom lengths available)
Shape	Round, square, flat, hollow, oval, triangle, U-profile, L-profile, T-profile (custom shapes available)
Thickness	0.8 - 5.0mm
Application	Elevator components, shower rooms, and industrial applications

Surface Treatment Options

Surface Treatment	Mill-finish, anodized, powder coated, electrophoresis, brushed
Anodized Colors	Silver, black, champagne, bronze, gold (custom colors available)
Anodized Thickness	8 - 25μm
Electrophoresis Colors	Silver, black, champagne, bronze, gold (custom colors available)
Powder Coated Colors	Custom colors available
Powder Coated Thickness	60 - 120μm
Color Stability	10-20 years for indoor applications

Packing Options

Bundles Packing	EP foam protection with waterproof craft paper wrapping
Carton Packing	Individual plastic bags with multiple units per carton
Wood Pallet Packing	Bundles or cartons loaded on wooden pallets
Custom Packing	Special packing requirements accommodated

Service Details

MOQ	500kg per item (13-15 tons for 20GP container; 25 tons for 40HQ)
OEM Service	Accepts customer drawings, samples, or design specifications
Production Capacity	5,000 metric tons monthly
Deep Processing	CNC, drilling, milling, cutting, bending, tapping, welding, assembling, punching
Brand Name	HENTEC
Certifications	ISO9001-2008, ISO14001, SGS
Delivery Time	12-18 days for die development and samples; 20-30 days for mass production after sample approval
Payment Terms	T/T, L/C
FOB Port	Shanghai

Applications

Our aluminum profiles are used in automotive, rail, machinery, electronics, medical, and industrial applications. They serve as essential components for hardware, machinery, electromechanical parts, solar PV products, radiators, fitness equipment, building materials, lighting fixtures, and various piping systems.

Competitive Advantages

Comprehensive engineering design and technical support
Advanced deep processing capabilities including cutting, punching, drilling, milling, and fabrication
Rigorous quality control with inspections throughout production
15-year product performance warranty

Technical Specifications

Chemical Composition (%)

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥160MPa	≥110MPa	≥8%
6063	T6	≥205MPa	≥180MPa	≥8%
6061	T6	≥265MPa	≥245MPa	≥8%

Technical Support

Custom design services including CAD drawings and 3D models
Design optimization by our R&D team to reduce costs and improve performance
Complete "one-stop" service from design to finished product
Strict quality control throughout the entire production process

Production Capabilities

Our facility operates 44 aluminum extrusion lines capable of producing profiles up to 350mm in diameter. Our largest 6800-ton extruder handles complex industrial profiles up to 600mm diameter. We specialize in custom molds and complex profile designs with our in-house R&D team.

Surface Treatment Facilities

Our 6 anodizing lines produce uniform oxidation films (8-25μm) in various colors. All products undergo rigorous inspection, with defective items either reprocessed or scrapped. We also operate 4 powder coating lines using Swiss Gema equipment and environmentally friendly paints.

CNC Machining Capabilities

Our advanced machining center includes 12 PRATIC machining centers for complex profiles up to 6 meters, automated Wegoma cutting systems, 30 punching machines (50-100 ton capacity), and specialized bending/milling equipment for precision fabrication.

Quality Packaging & Shipping

We implement strict warehouse management with sectioned storage and detailed records. All products are inspected before shipment using protective packaging methods tailored to customer requirements.

Certifications

Notable Projects

We supplied aluminum components for the 94,000-seat Soccer City Stadium in Johannesburg (Africa's largest stadium) and collaborate with Nordic trailer manufacturer Lobster Trailers. Our products are also used in school furniture systems and various industrial applications worldwide.
