Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface

Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface
Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface

Large Image :  Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface

Product Details:
Certification: CE, ISO
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: 0.99
Contact Now
Detailed Product Description
Model NO.: Slots Series Type: Industrial Aluminium Profile
Shape: T - Profile Grade: 6000 Series
Temper: T3-T8 Alloy: Alloy
Surface Finishing: Anodic Oxidation Alloying Ingredient: 6063
Polished Aluminum Profile: Chemical Polishing Dimension: 20*20, 40*40, 80*80
Surface Treatment: Anodized Processing: Cutting
Slot Width: 6MM, 8MM, 10MM Length: 6m/pc
Tensile Strength: ≥ 160Mpa (T5), ≥ 205Mpa (T6)
Highlight:

40*40mm T-Slot Aluminum Profile

,

Anodized Surface Aluminum Profile

,

Industrial Grade Aluminum Extrusion Profile

Customized 40×40mm Aluminum Profile System
Metalplus specializes in industrial aluminum profile design and manufacturing, with a 100,000+ square meter production base and annual capacity exceeding 100,000 tons.
Product Specifications
Product T-Slot Aluminum Profiles Extrusion Frame
Material 6000 series aluminum alloy
Temper T4, T5, T6
Surface Treatment Powder Coating (RAL Colors), Anodizing (AA10/15/20/25), Sandblasting, Brushing, Mechanical/Chemical Polishing, Wood Grain Coating, PVDF, and more
Standard Sizes 40×40mm, 30×30mm, 30×40mm, 25×25mm
Slot Width 6mm, 8mm, 10mm
Standard Length 6 meters (custom cutting available)
Available Colors Wood Grain, Aluminum Silver, Black, White, Brown, Bronze, Champagne, Gold, and custom options

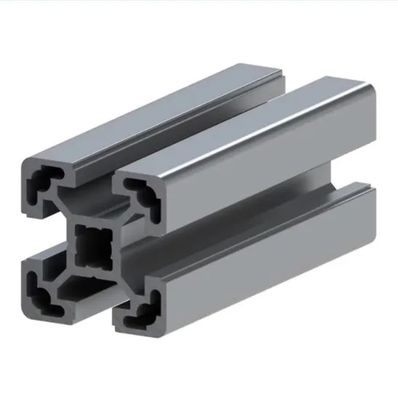

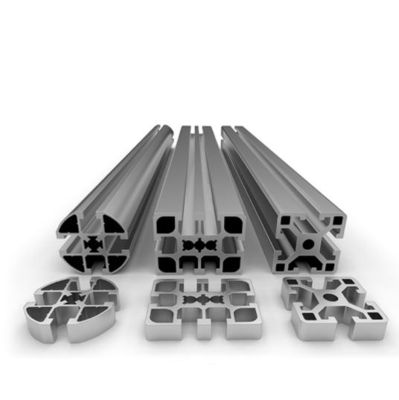

40×40mm aluminum profile system sample Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 1 Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 2
Material Properties
Chemical Composition:
Alloy Si Fe Cu Mn Mg Cr Zn Ti Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 Rest
Mechanical Properties:
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥160MPa ≥110MPa ≥8%
6063 T6 ≥205MPa ≥180MPa ≥8%
Packaging & Shipping
Packaging: Standard export packaging with custom options available
Shipping Options:
  • Samples shipped via express (DHL, FedEx, UPS) with freight prepaid by client
  • Mass production shipped FOB Shanghai
  • Standard delivery: 3 weeks after order confirmation
Related Products
Aluminum Profiles Die Casting ACP
Fan Blade Profiles LED Housing Composite Panel
Profile System Stainless Casting
Company Profile
Since 2007, MetalPlus has operated a 3600-ton extrusion press capable of producing heat sinks up to 600mm diameter. We offer complete solutions including mold design, extrusion, surface treatment, and fabrication for construction and industrial applications.

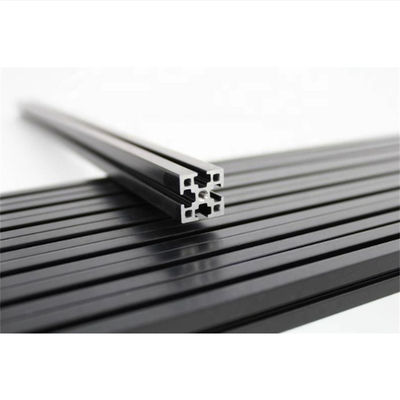

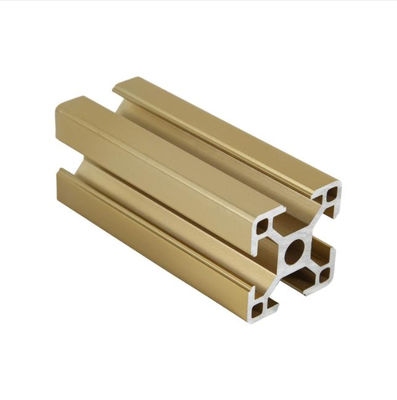

Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 3 Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 4
Certifications & History

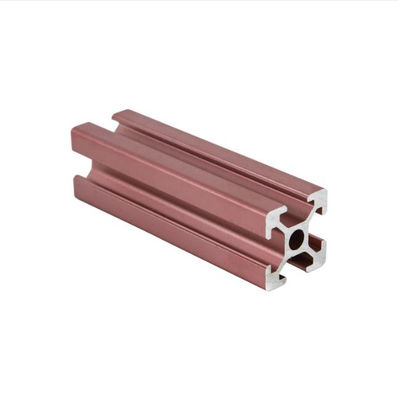

Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 5
  • 2004: Recognized Brand of Building Industry
  • 2006: ISO 9001 Certification
  • 2009: Jiangsu Famous Brand
  • 2012: Supplier for Panasonic and LG
  • 2019: Partnered with global heater manufacturers
Notable Projects
Soccer City Stadium, Johannesburg - Supplied aluminum components for Africa's largest stadium (94,000 seats)
Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 6
Lobster Trailers - Custom aluminum components for Nordic trailer manufacturer
Industrial Grade T-Slot Aluminum Profile with 40*40mm Customized Dimension and Anodized Surface 7
