Customized Dimension 6000 Series T3-T8 Temper Aluminum Extrusion Profile for Industrial Applications

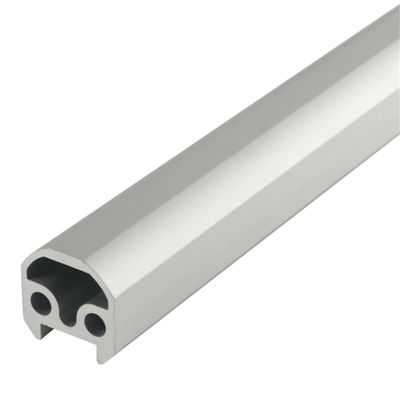

Large Image : Customized Dimension 6000 Series T3-T8 Temper Aluminum Extrusion Profile for Industrial Applications

Product Details:

Certification:	ISO
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2980

Contact Now

Detailed Product Description

Model NO.:	Aluminum Frame	Type:	Window & Door Aluminium Profile, Decoration Aluminium Profile
Shape:	T - Profile	Grade:	6000 Series
Temper:	T3-T8	Window Series:	60 Series
Alloy:	Alloy	Surface Finishing:	Powder Spraying
Alloying Ingredient:	6063	Polishing Type:	Chemical Polishing
Surface Treatment:	Anodized	Processing:	Extrusion, Cutting, Milling
Tolerance:	± 0.1mm	Section Size:	Square: ≤ 150150mm, Rectangle: ≤ 25050mm, Round: ≤ ∅170mm
Production Capacity:	100000 Ton/ Year
Highlight:	6000 Series Aluminum Extrusion Profile , T3-T8 Temper Aluminum Extrusion Profile , Customized Dimension Aluminum Profile

Customize Dimension Aluminum Anodized Frame Extrusion Profile

Product Specifications

Available Materials: Aluminum 6063

Finish Options: Powder coating, Anodizing (Oxidation), Sandblasting, Brushing, Painting, Passivation, Silk screen, Polishing, Galvanizing, (Nickel/Tin/Chrome/Copper) Plating

Tolerance: ±0.1mm

Section Size: Square: ≤150×150mm, Rectangle: ≤250×50mm, Round: ≤∅170mm

Applications

Auto parts
Household Electric Appliances
Medical equipment
Fitness equipment
Electrical machinery
3D printer components
Computer cases and enclosures
Industrial manipulative computers
Machine frames and enclosures
Tool cabinets and storage systems

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥160Mpa	≥110Mpa	≥8%
6063	T6	≥205Mpa	≥180Mpa	≥8%
6061	T6	≥265Mpa	≥245Mpa	≥8%

Technical Support

Custom design services including CAD drawings and 3D models
Professional R&D team for design optimization and cost reduction
Complete "one-stop" production from design to surface treatment
Strict quality control throughout the manufacturing process

Production Capabilities

Extrusion: 44 aluminum extrusion lines with maximum outer diameter of 350mm

Anodizing: 6 production lines with uniform oxidation film thickness

Painting: 4 powder spraying lines using Gema Switzerland nozzles

CNC Machining: 12 PRATIC machining centers for complex profile processing

Quality Assurance

Strict inspection procedures for all anodized products
Defective products are scrapped or reprocessed
No color difference between batches
ISO9001 certified production standards

Notable Projects

Soccer City Stadium: Supplied aluminum for Africa's largest stadium in Johannesburg

Lobster Trailers: Partnered with Nordic trailer manufacturer for optimized designs

School Furniture: Supplied aluminum legs for school desks
