Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Temper: | 6063-T5 |
|---|---|---|---|
| Surface: | Anodize , Powder Painted | Section: | Customeized |
| High Light: | aluminium extrusion profiles,aluminium extruded profiles |
||

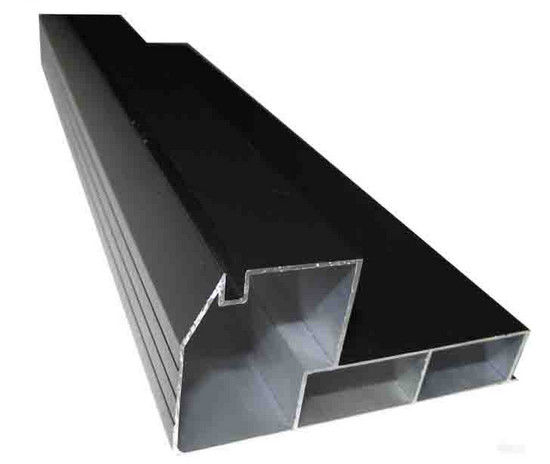

Powder Painting Aluminium Extrusion Profile , Customeized Section / With CNC machining
Hentec Industry Co.,Ltd is one China Manufactory, professional at aluminum extrusion profiles, both semi and final products, such as LED aluminum bracket, aluminum door, aluminum window, aluminum curtain rod, aluminum guide rail, aluminum fencing and all kinds of industrial and building aluminum profile, square, round, flat, oval, angle, irregular and all types according to the customers' drawing.
Our advantage is that we have very strong design team ,with innovation . And we have the ability to give you the technical support !
We are supping the following aluminum products to SHARP ,BOSCH ,PANASONIC ,AKCOME ...
Description:
|
Material |
Alloy 6063, 6061 or according to customer’ s choice |
|
Temper |
T4, T5, T6,T66 |
|
Surface |
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
|
MOQ |
1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
|
Machining |
High-precision machining available upon request (lathe/milling/CNC machining/polishing/punching/drilling/taping, etc.) |
|
Moulding |
We can design the mould as customer's request |
|
Certificate |
ISO14001:2004, ISO9001:2000 |
|
FOB Port |
Shanghai, etc. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
